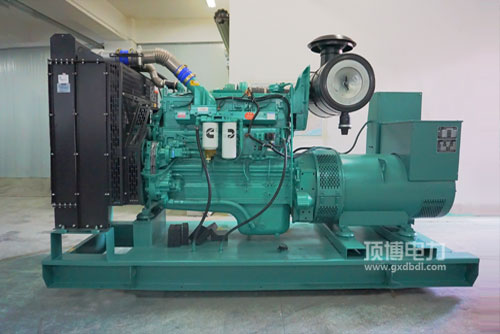

224-310KW康明斯發電用發動機可靠性高：高強度合金鑄造缸體、可鍛鑄鐵(FCD) 活塞，剛性更好，降低振動和噪聲，提高了發動機適應更高的爆發壓力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯發電用發動機燃油經濟性好: 先進的燃油控制系統，獨有的STC、ESTC 分級控制系統，特殊設計的活塞頂部燃燒室，高壓噴射燃油，充分霧化，燃燒充分。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯發電用發動機瞬態性能優異: 完美的發動機整體設計，配合康明斯獨特的EFC系統，控制精度高，響應時間快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯發電用發動機升功率高: 整體設計緊湊.外形布置合理，運行平穩。

High lift power: Integrated and compact design, reasonable layout and smooth operation.

電噴機型 QSNT. QSK19. QSK38. QSK50滿足中國非道路第三階段及北美Tier2. Tier 3排放法規要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零備件可得性好， 發動機運行及維護保養便利，成本低。

Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

發動機規格Engine Specifications

功率范圍 Power Range   224-310KW

型式 Type   直列/六缸/四沖程/四氣門  In-ine/6-Cylinder/4-Stroke/4-Valve

缸徑x沖程 BoreX Stroke  125X 147mm

排量 Displacement   11L

外形尺寸 Dimension  長X寬X高(LXWX H) 1360 x 833X 1068 mm

凈質量 Dry Weight   940kg

224-310KW康明斯發電用發動機的特點：體積小， 壓縮比高， 格柵空氣加熱，易于啟動，移動車載電源的首選。

Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推薦機型Engine Models Recommended
